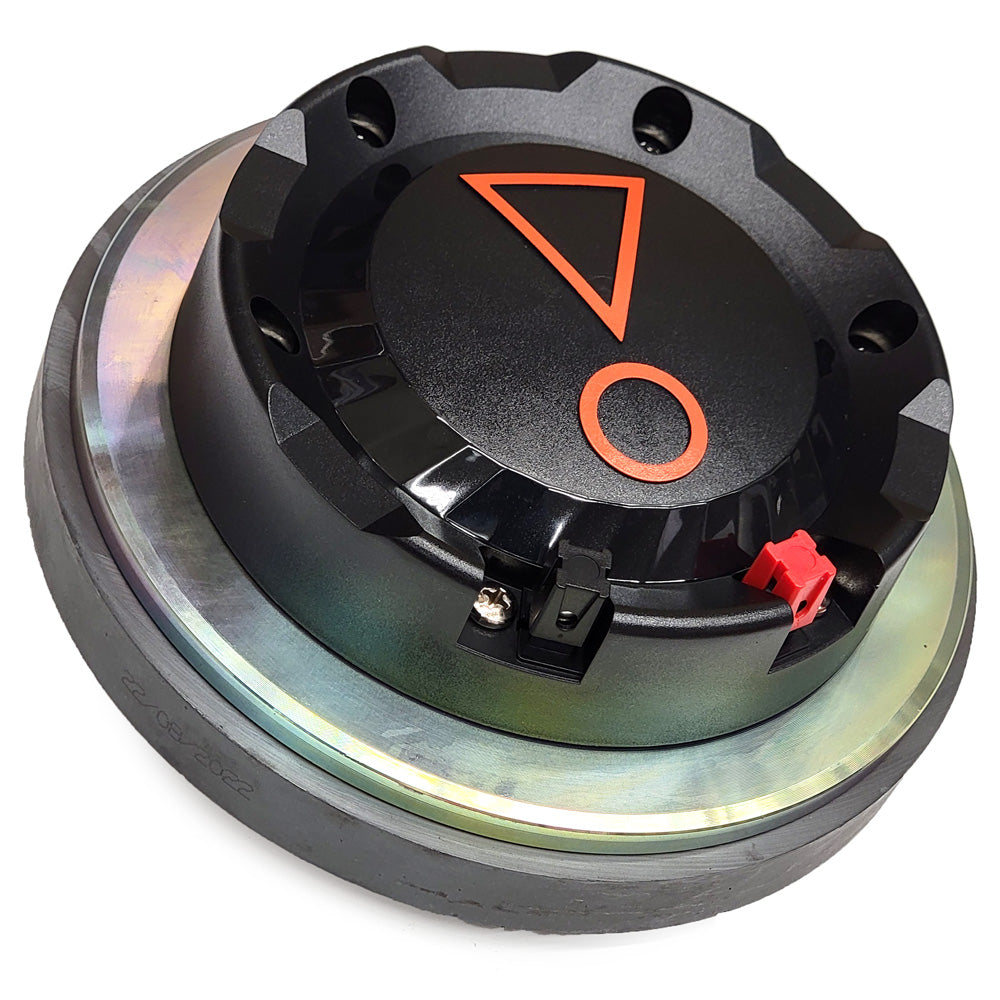

JBL D405 TRIO-X Birds Eye View Showing the new Exclamation Mark Logo of JBL on the professional Line

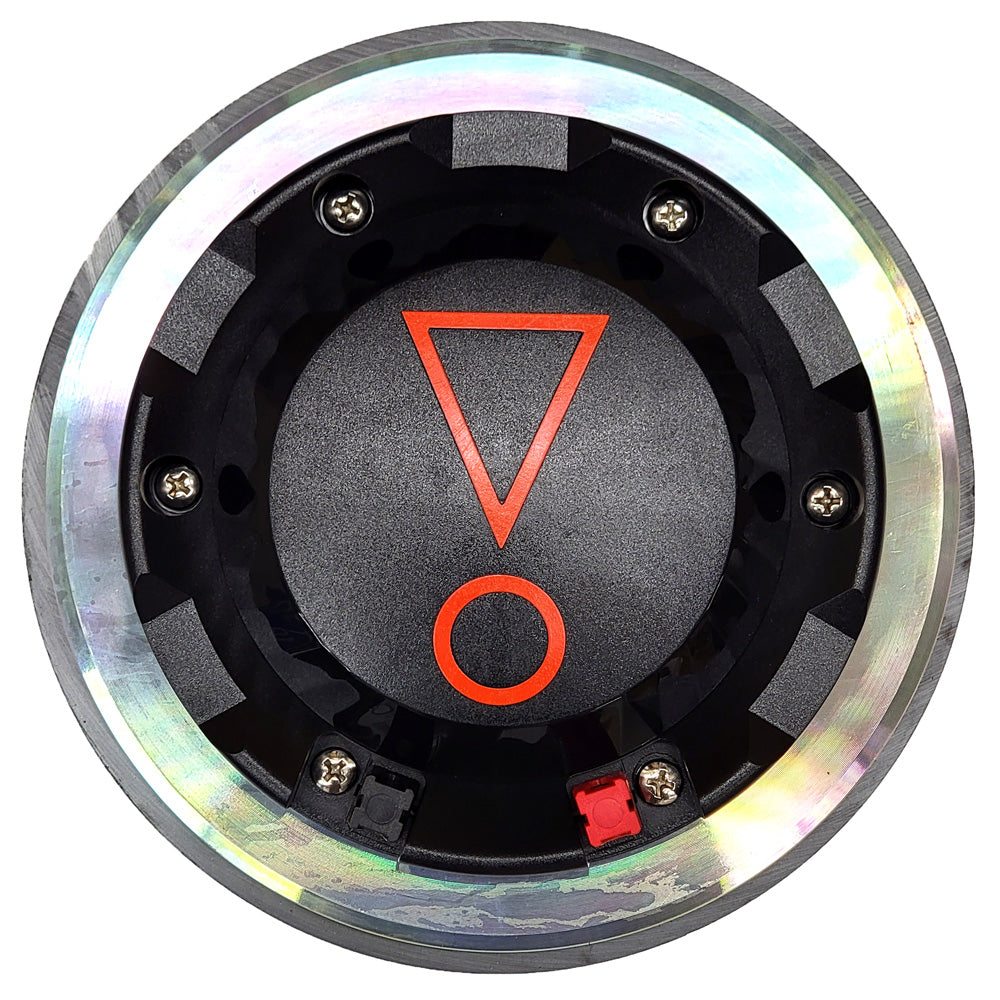

JBL D405 TRIO-X Top View Showing the new Exclamation Mark Logo of JBL on the professional Line and Red terminal on the bottom right and negative black terminal on the left side

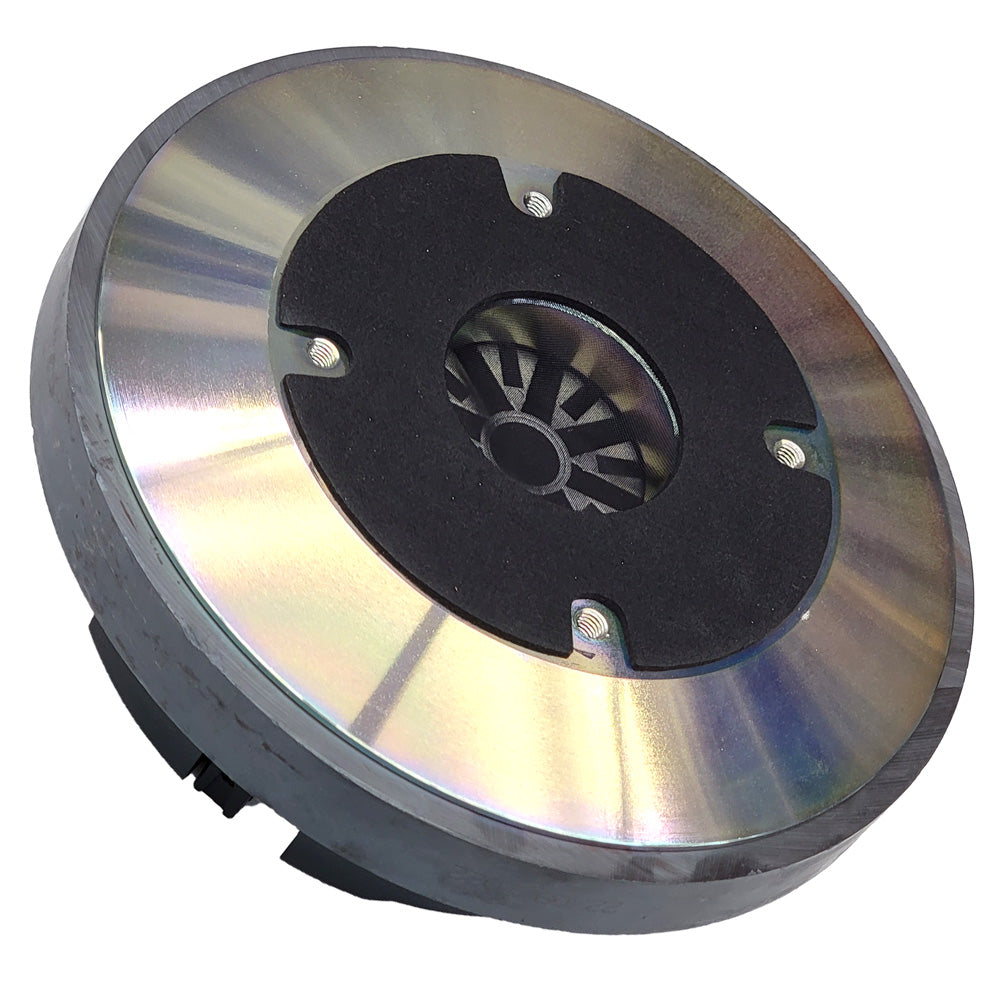

JBL D405 TRIO-X Birds Eye View Showing the horn mounting side of the driver 2" inch throat

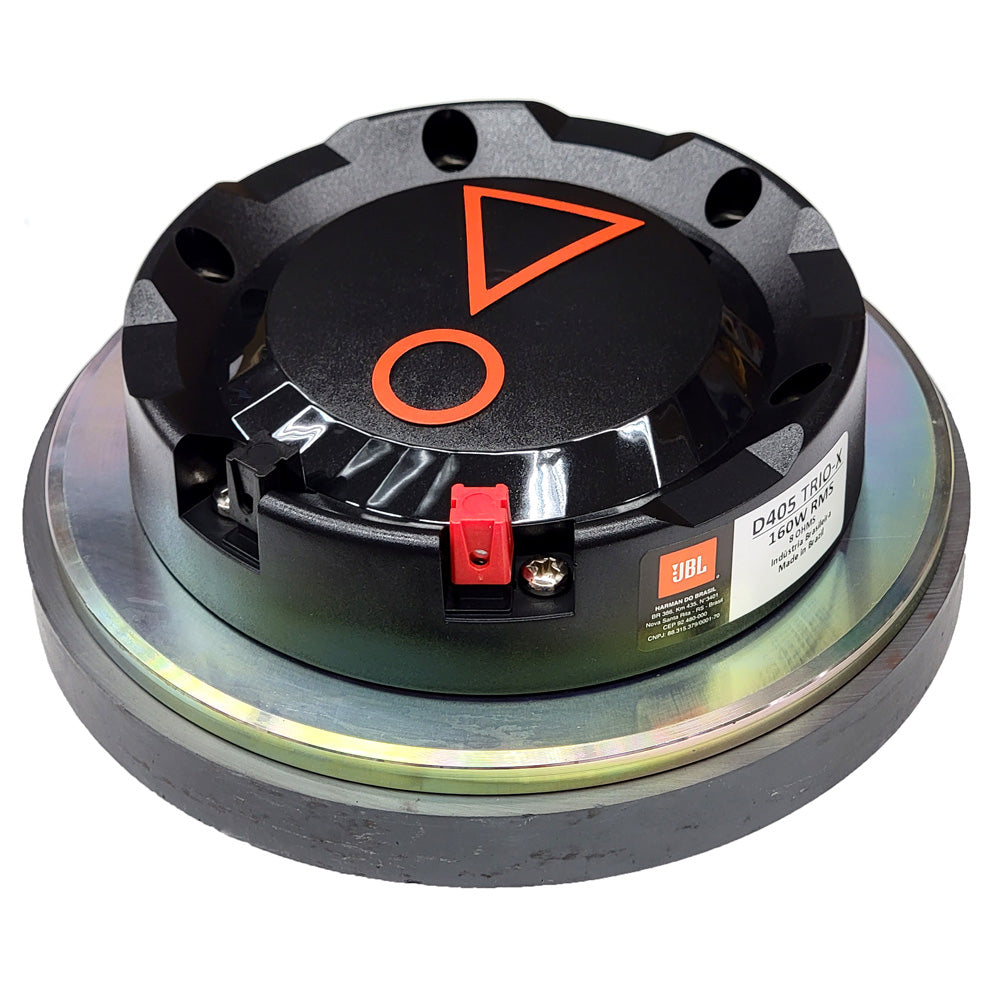

JBL D405 TRIO-X Birds Eye View Showing the new Exclamation Mark Logo of JBL on the professional Line and sticker of JBL that says 160W RMS 8 ohms

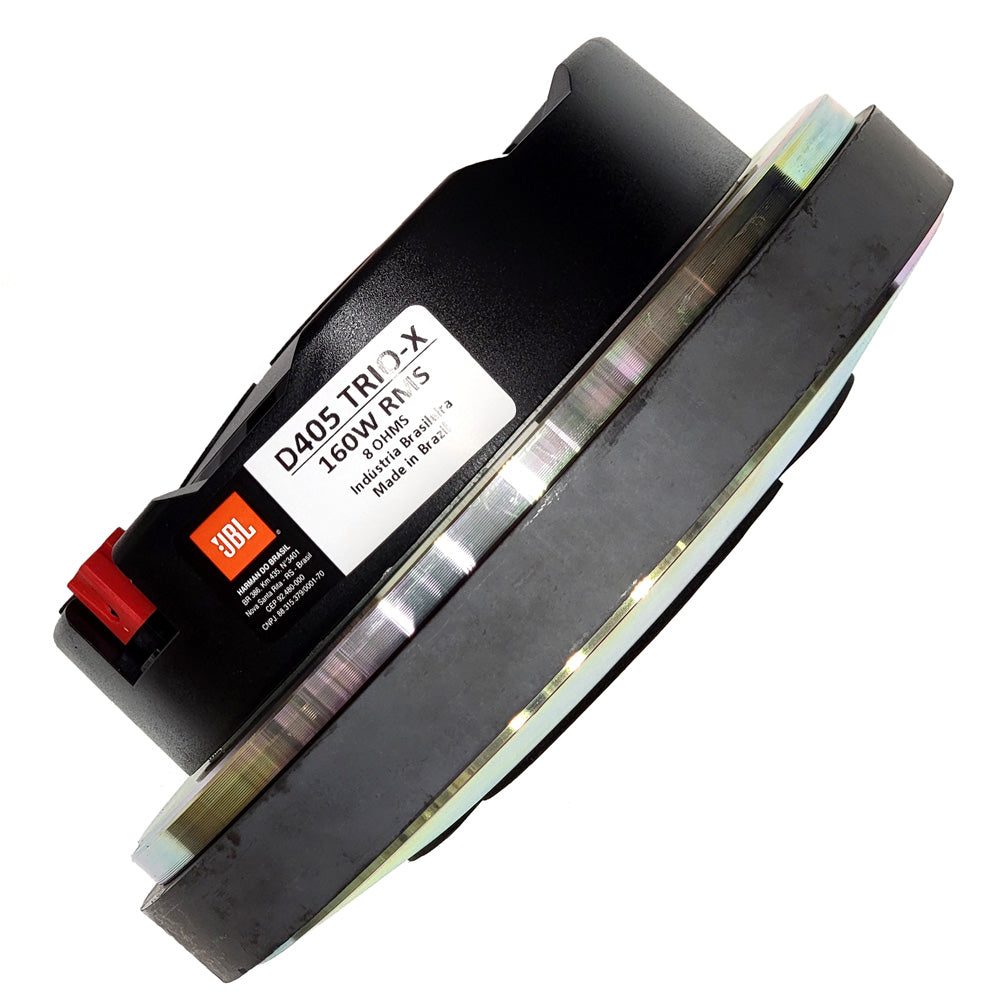

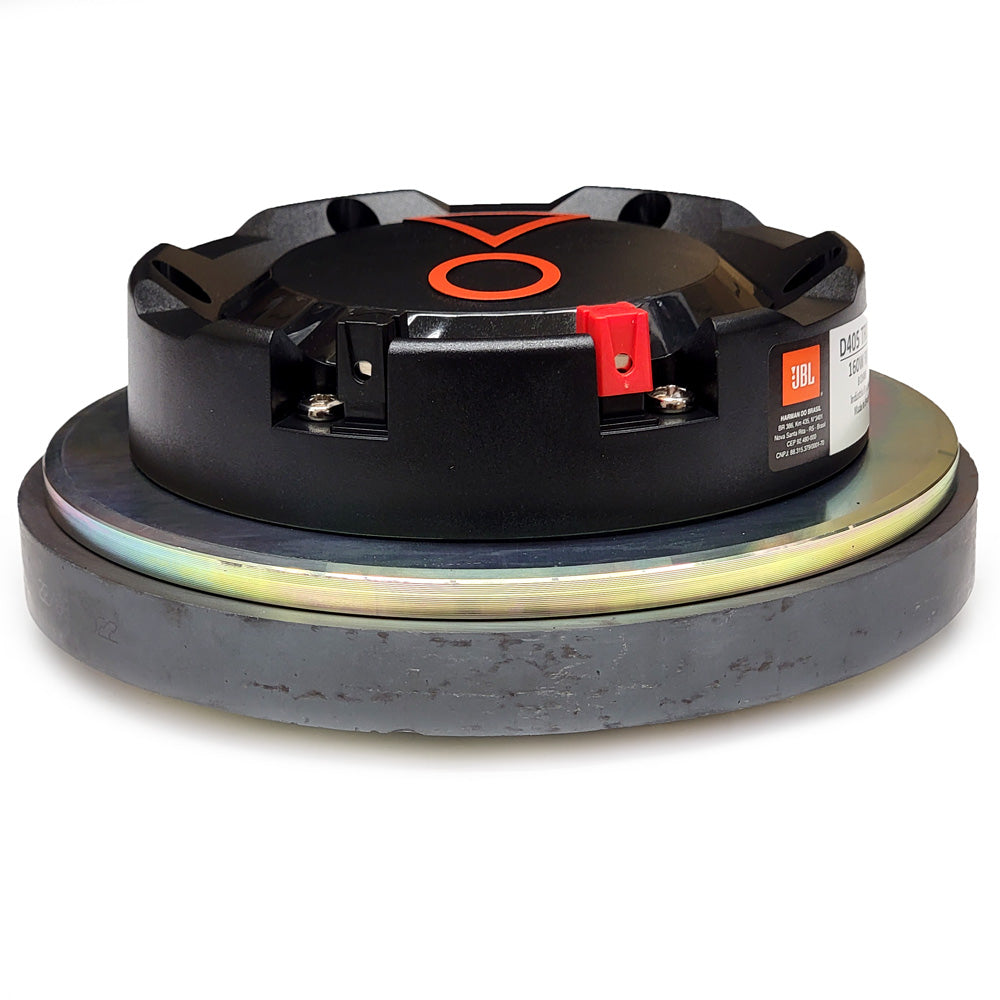

side view of the JBL D405 TRIO-X 160W RMS 8 Ohm speaker driver, featuring a black plastic housing, a white product label, and a red and black terminal connector, shown on a white background.

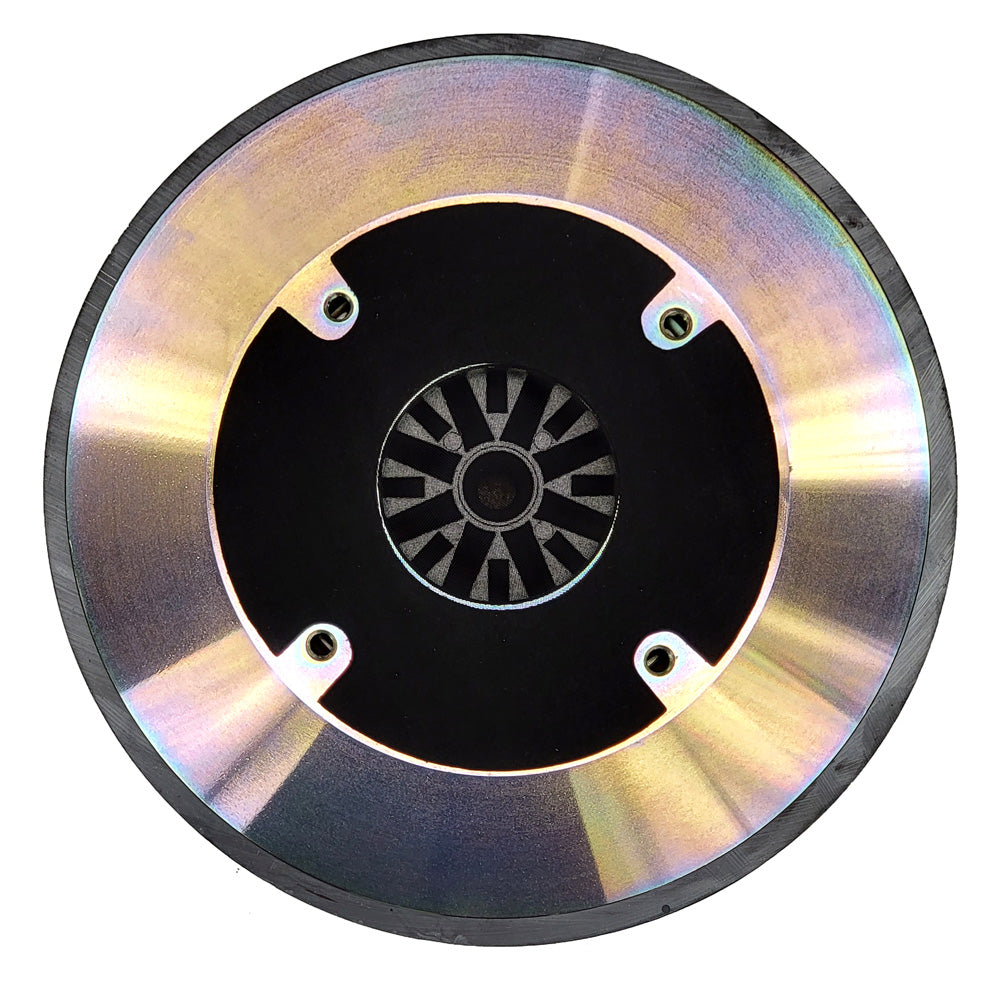

JBL D405 TRIO-X Bottom View Showing the 2 inch throat on the center and 4 mounting holes for the horn

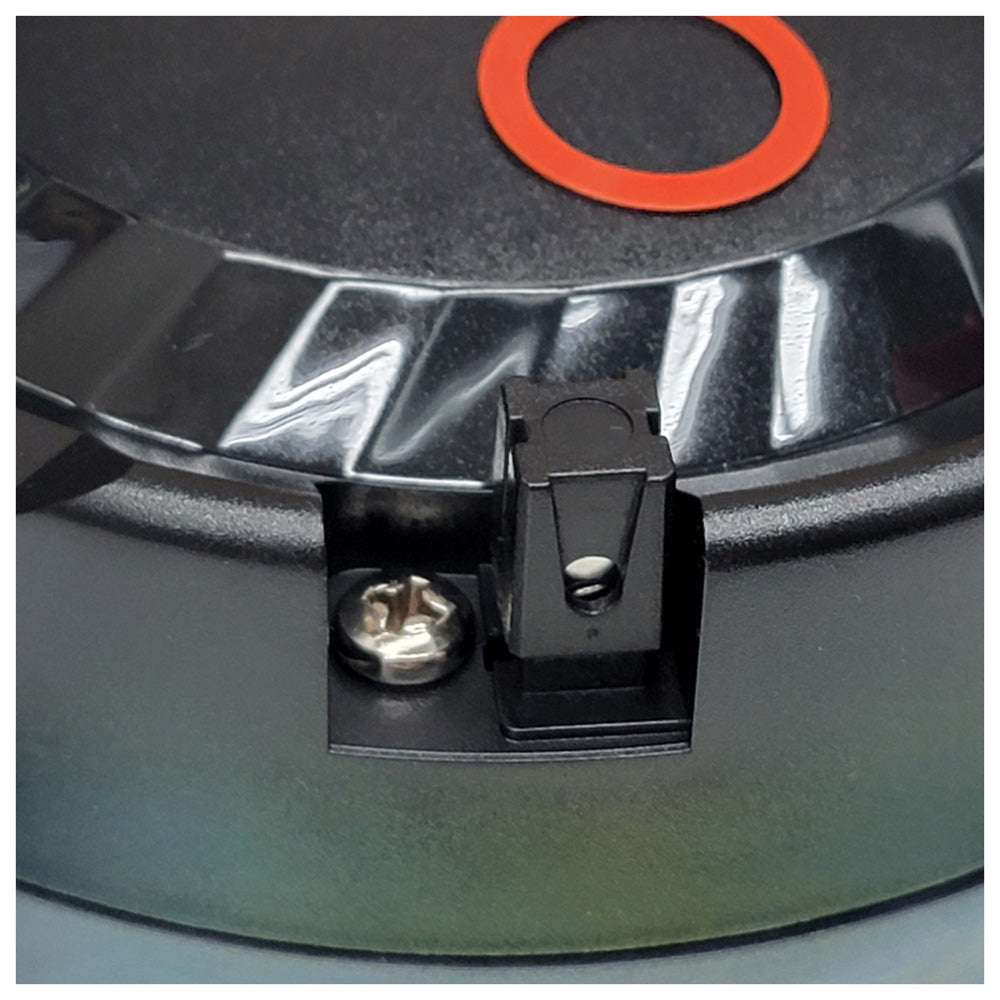

JBL D405 TRIO-X cloesup view of the black negative terminal
side view of the JBL D405 TRIO-X 160W RMS 8 Ohm speaker driver, featuring a black plastic housing, a white product label, and a red terminal connector, shown on a white background.

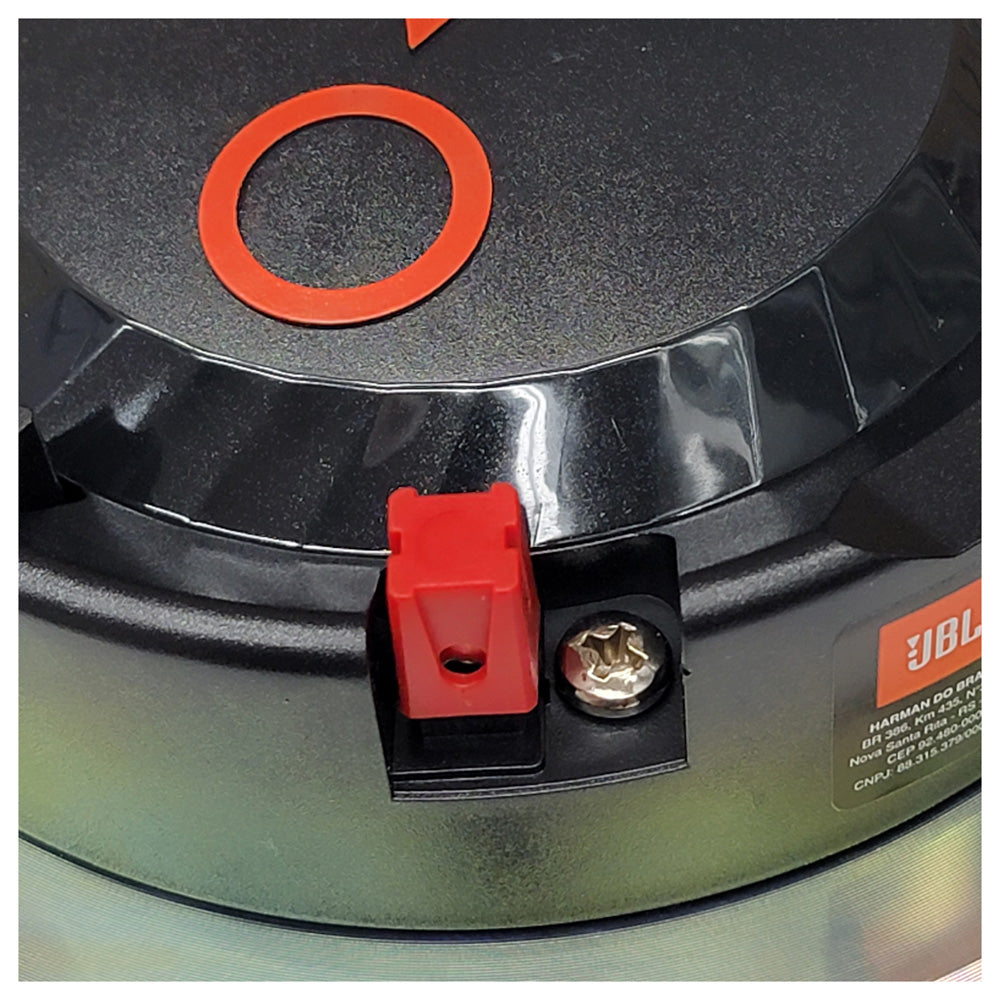

JBL D405 TRIO-X cloesup view of the red positive terminal

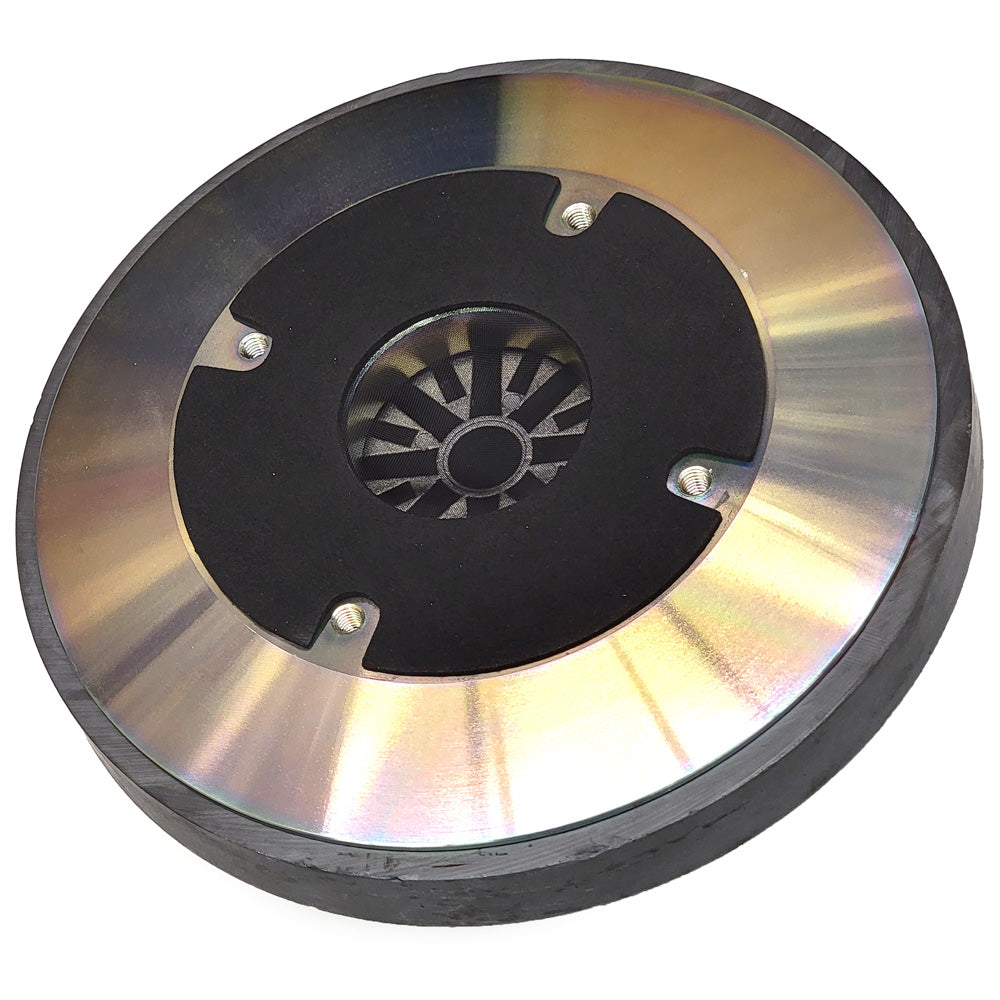

JBL D405 TRIO-X angled view of the bottom of the driver

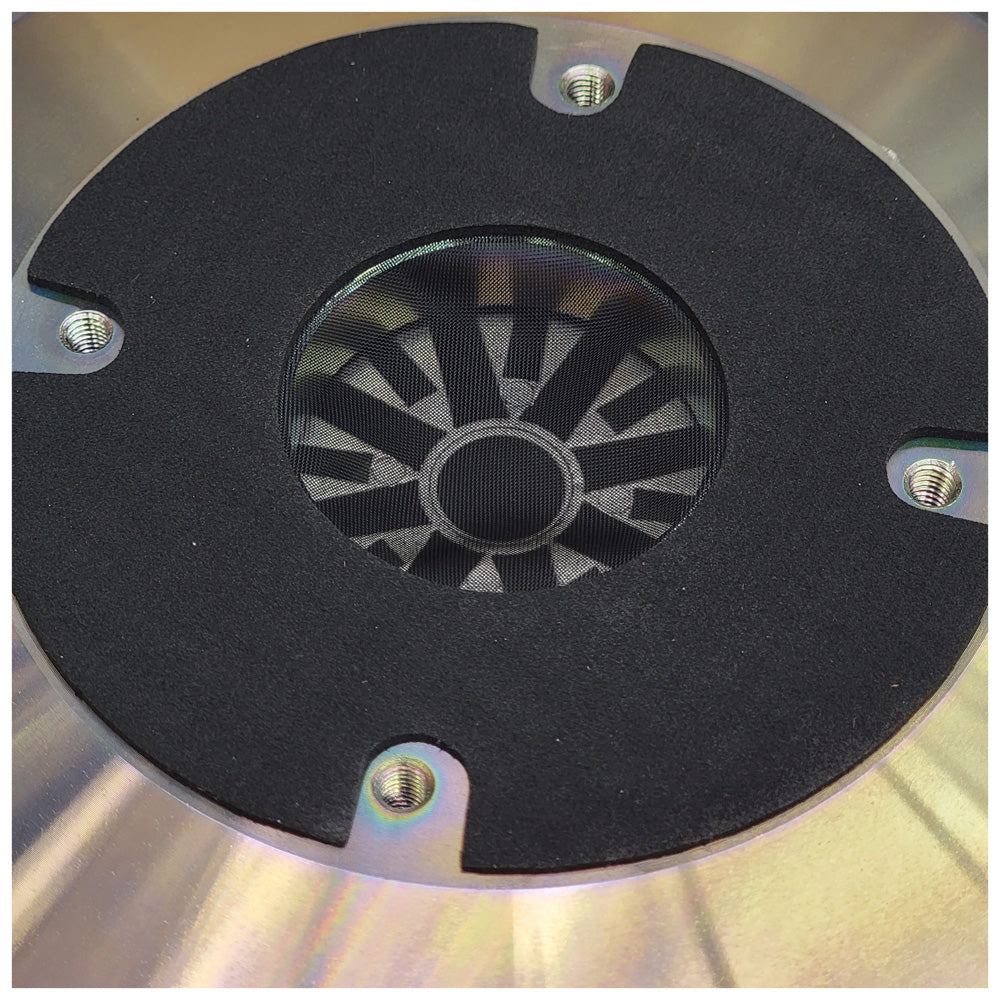

JBL D405 TRIO-X cloesup view of the 2 inch throat in the center
A brown cardboard box for a JBL D405 TRI-O X midrange driver, featuring JBL and Harman branding tape seal on the top and sides, with a white shipping label on a white background.

JBL D405 TRIO-X High Compression Phenolic Midrange Driver 110/160-Watt RMS 8-ohm

JBL
$ 289.99
$ 188.00
Free shipping on eligible orders. Shipping details.
Snap Logo Lease for as low as $/week Learn More

The D405 TRIO-X is a phenolic diaphragm compression driver with high efficiency.
Features a dome-type phenolic diaphragm that ensures efficiency and durability.

Magnetic assembly with high magnetic flux has in its GAP magnetic fluid.
It has a 50mm (2") mouth, allowing for coupling with many horns.
The Repair has perfect self-centering, and is easily replaceable in the event of any defect.

Nominal Power (500 Hz) 110 Watts RMS
Nominal Power (1,000 Hz) 160 Watts RMS
Peak Power (500 Hz) 220 Watts
Peak Power (1,000 Hz) 320 Watts
Nominal Impedance: 8 ohm
Sensitivity (1W/1m): 110 dB SPL
Frequency Response: 500-6,500 Hz
Minimum Recommended Crossover: 500 Hz
Throat Diameter: 50 mm / 2 inches
Diaphragm Material: Phenolic
Magnet Material: Barium Ferrite

UPC Barcode: 7896359567386
