| Specifications |
|---|
| Brand |
FAITAL PRO |
| Model |
8FE200 |
| Nominal Diameter |
8" |
| Nominal Impedance |
8ohm |
| RMS Power |
130 W |
| Peak Power (Watts) |
260 W |
| Sensitivity (dB) |
95 dB |
| Max Excursion(Xdam)(Xlim) |
10.4 mm |
| Max Linear Excursion (Xmax) |
4.67 mm |
| Usable Frequency Range (Hz) |
60-5k Hz |
| Surround Shape |
Triple Roll |
| Basket / Frame Material |
Steel |
| Spider Detail/Material |
1x constant height waves |
| Voice Coil Diameter |
1.46" |
| Voice Coil Former |
Kapton |
| Voice Coil Wire Material |
Aluminum |
| Voice Coil Winding Depth |
12 mm |
| Voice Coil Gap Height |
8 mm |
| Demodulating Ring |
No |
| Magnet Material |
Ferrite |
| Parameters |
|---|
| Compliance Equivalent Volume (Vas) |
0.48 Ft3 |
| Total Q (Qts) |
0.63 |
| Mechanical Q (Qms) |
13 |
| Electromagnetic Q (Qes) |
0.66 |
| Minimum Impedance (Zmin) |
6.8ohm |
| DC Resistance (Re) |
5.9 ohm |
| Mechanical Resistance (Rms) |
1.32 lbs/sec |
| Surface Area of Cone (Sd) |
29.61 in2 |
| Voice Coil Inductance (Le) |
0.44 mH |
| Flux Density |
1 T |
| BL Product(Bl) |
8.2 T-m |
| Moving Mass Of Diaphragm (Mmd) |
13.5 g |
| Moving Mass(MMs) |
15 g |
| Reference Efficiency (No) |
0.0102 |
| Mechanical Compliance (Cms) |
0.26 mm/N |
| EBP |
121 Hz |
| Driver Displacement |
36.25 in3 |

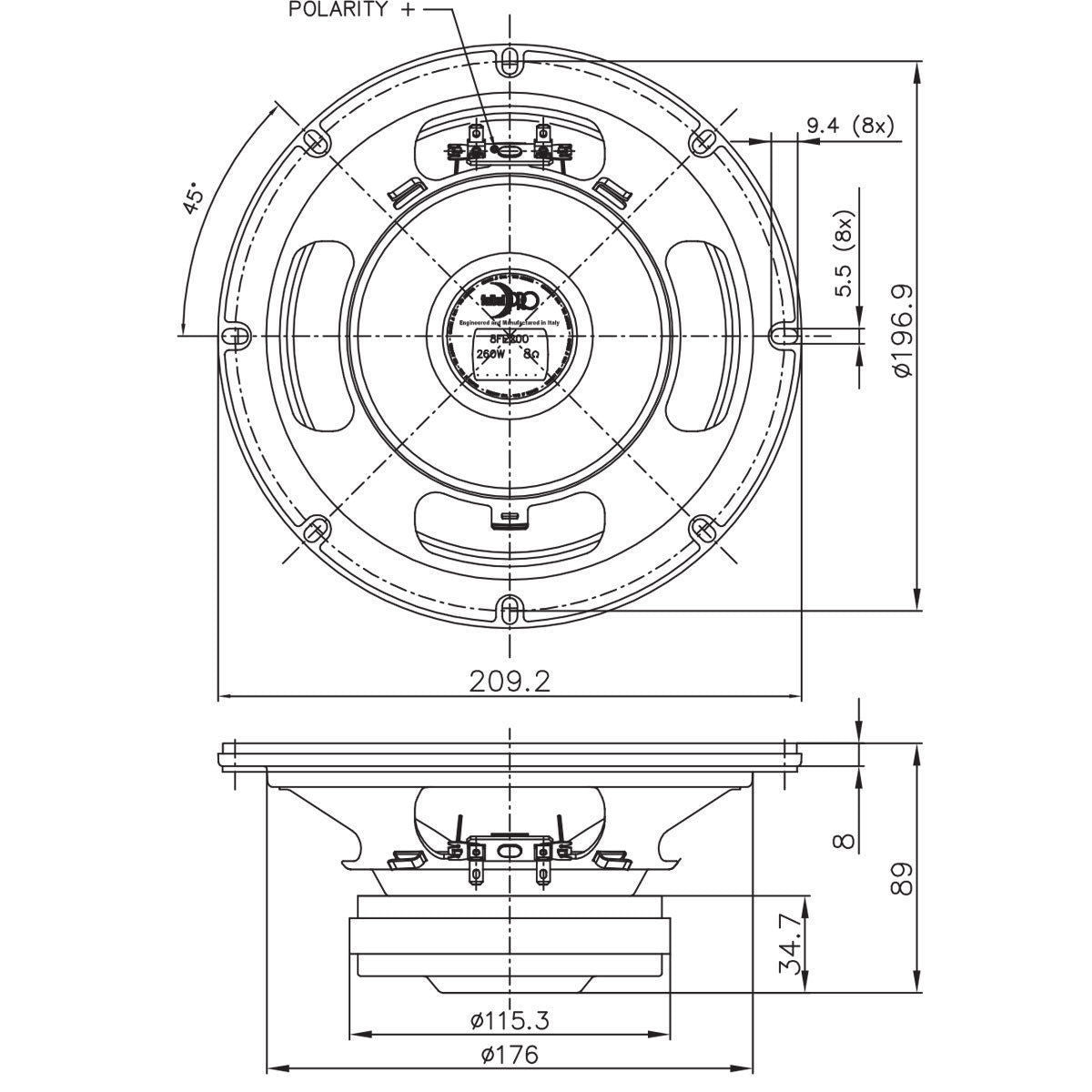

Mounting and Shipping Information |
|---|
| Overall Diameter |
8.24" |
| Baffle Hole Diameter |
7.01" |
| Bolt Circle Diameter |
7.75" |
| Flange and Gasket Thickness |
0.31" |
| Depth |
3.5" |
| Net Weight(lb) |
4.7 |
