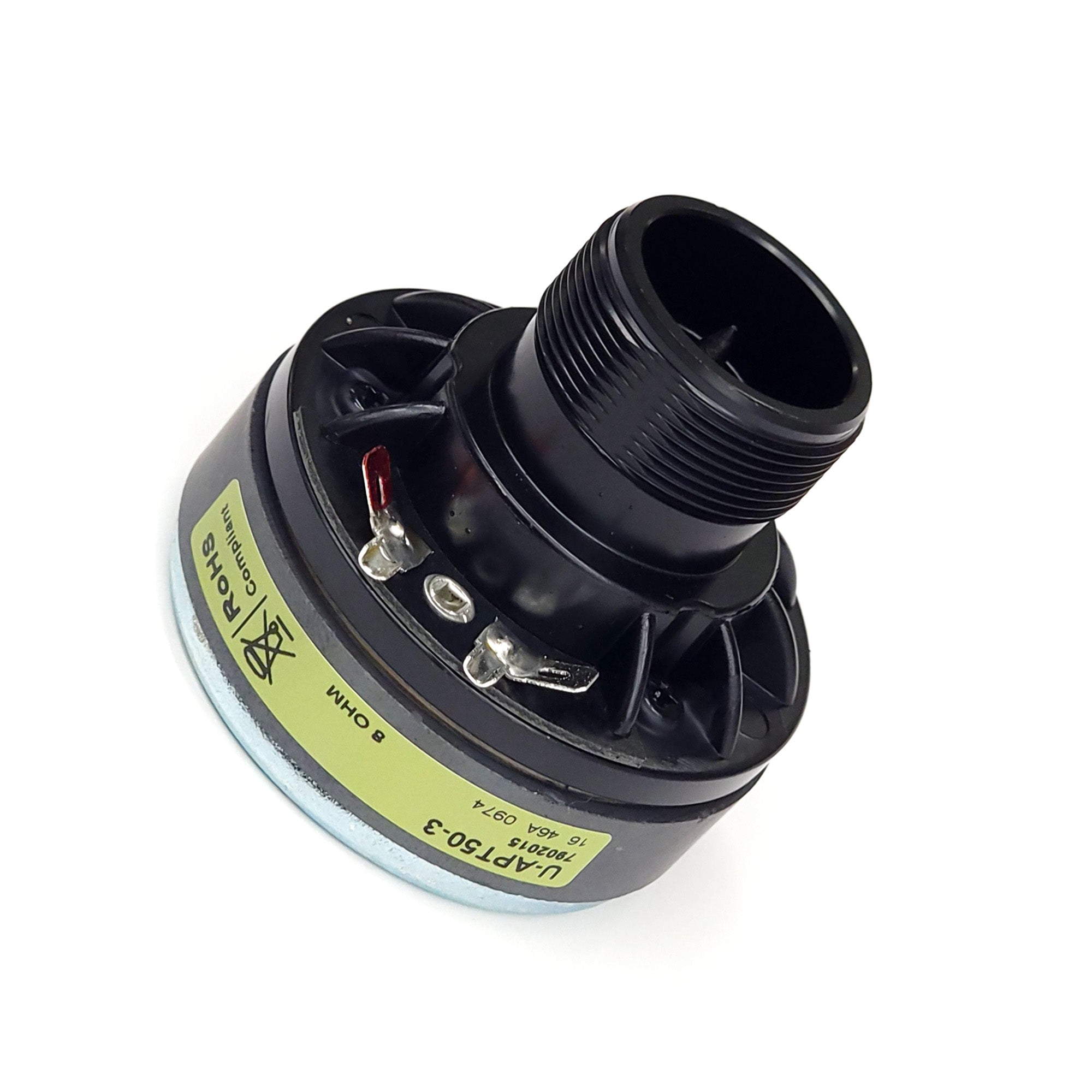

A black Eminence APT50 dirver a threaded cylindrical opening, metal terminals, and a yellow label, photographed on a plain white background.

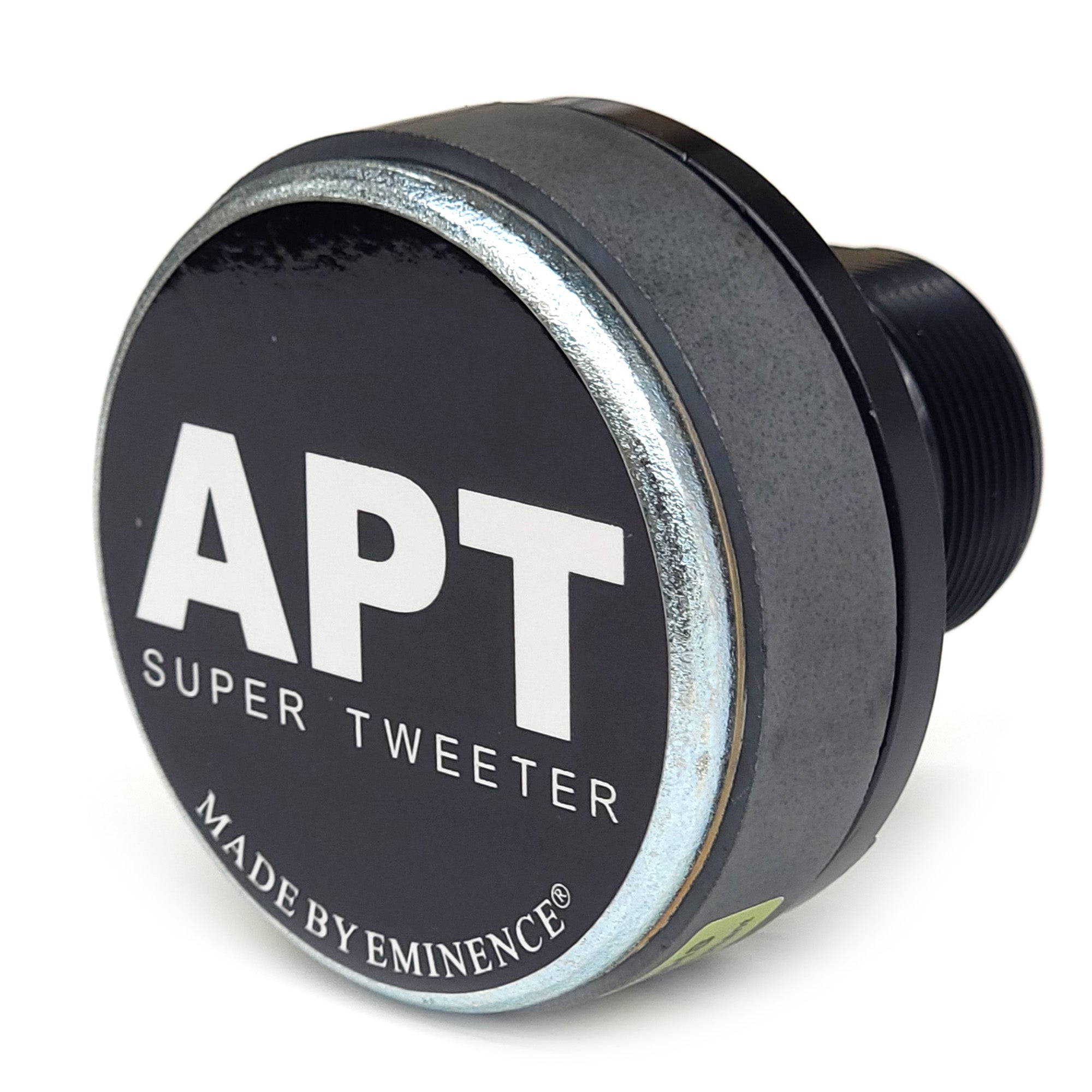

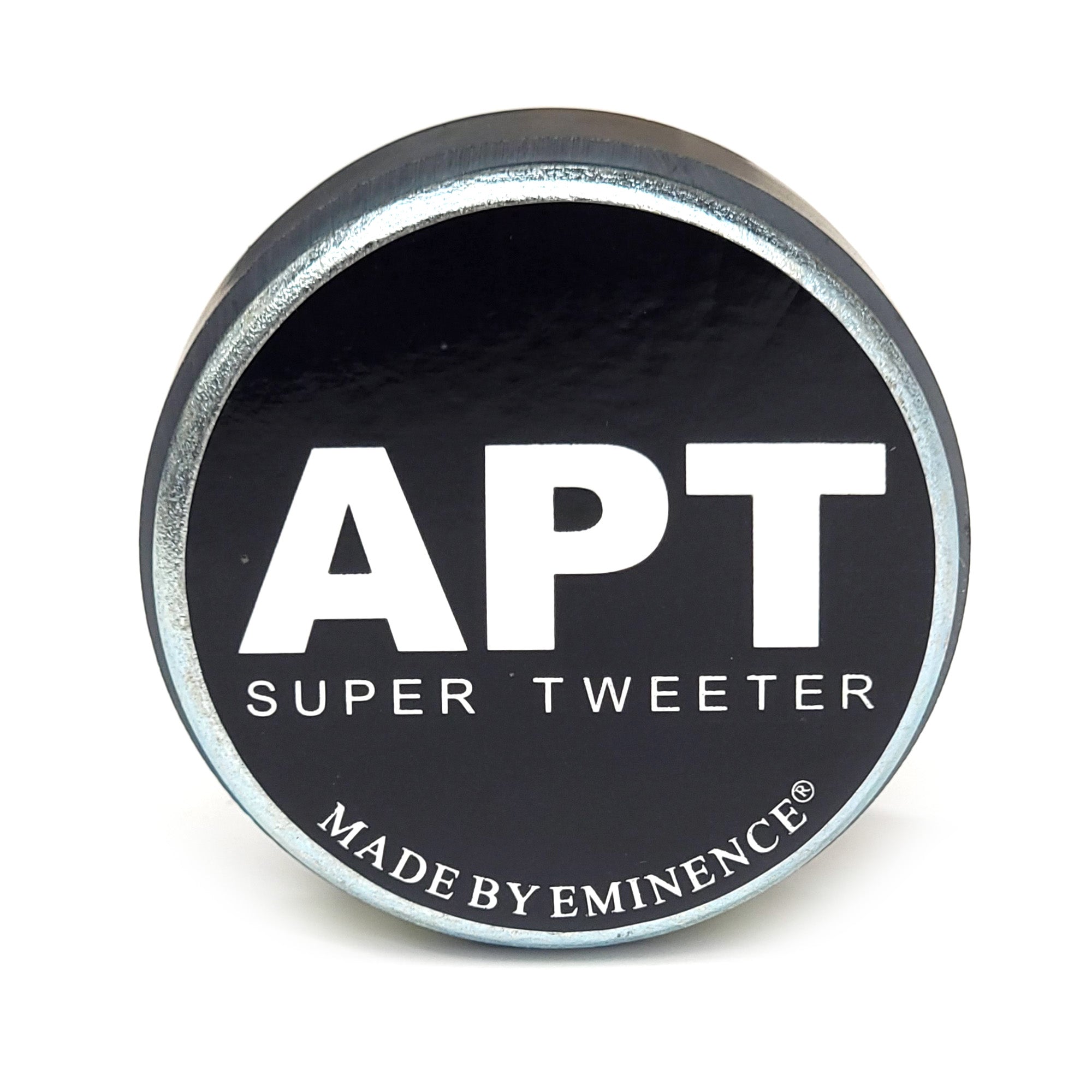

A black circular audio component labeled 'APT SUPER TWEETER' and 'MADE BY EMINENCE', with a metallic silver rim and a threaded black body, shown on a white background.

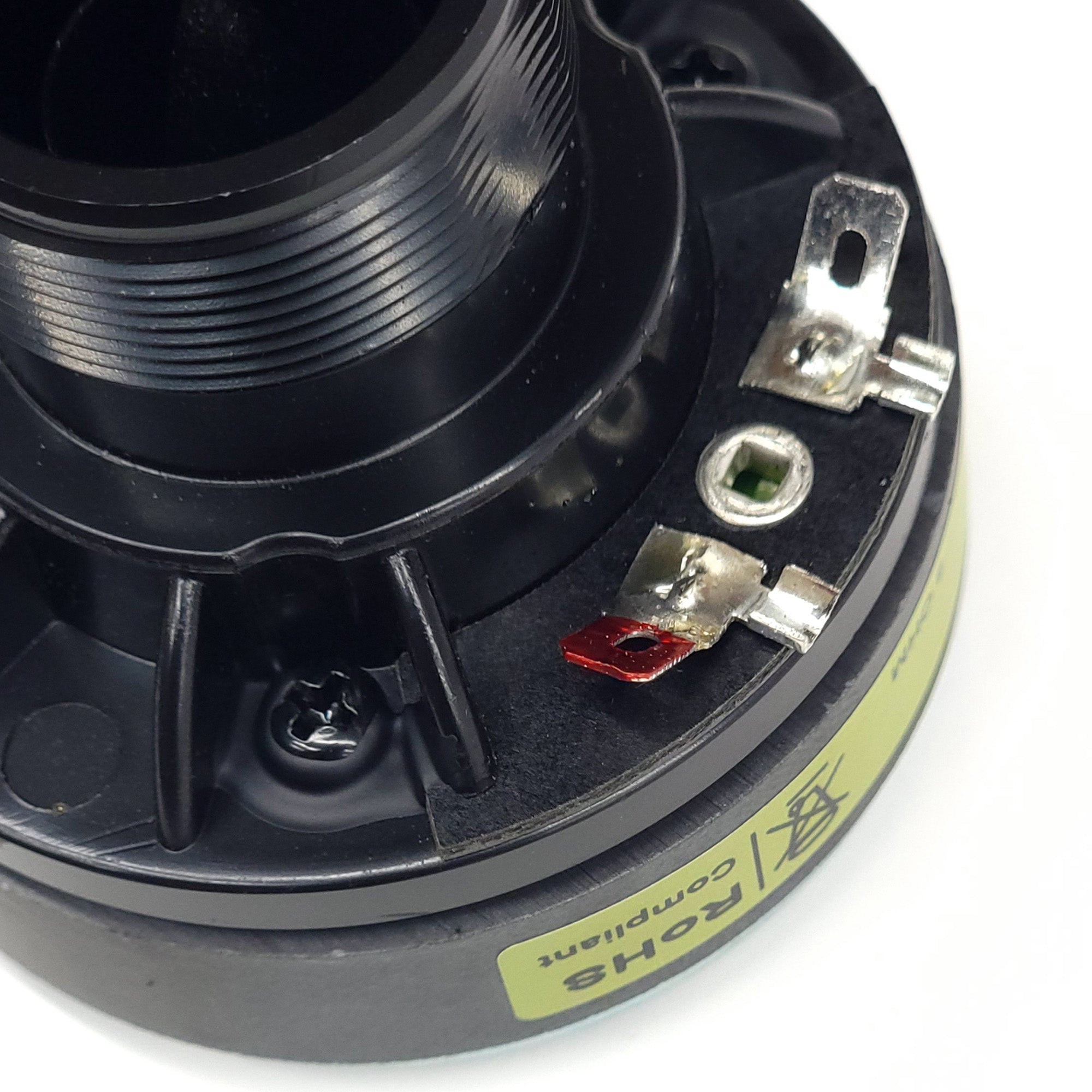

Close-up of a Eminence APT:50 component with metal terminal connectors, a small red screw, and a yellow RoHS compliance sticker on a white background.

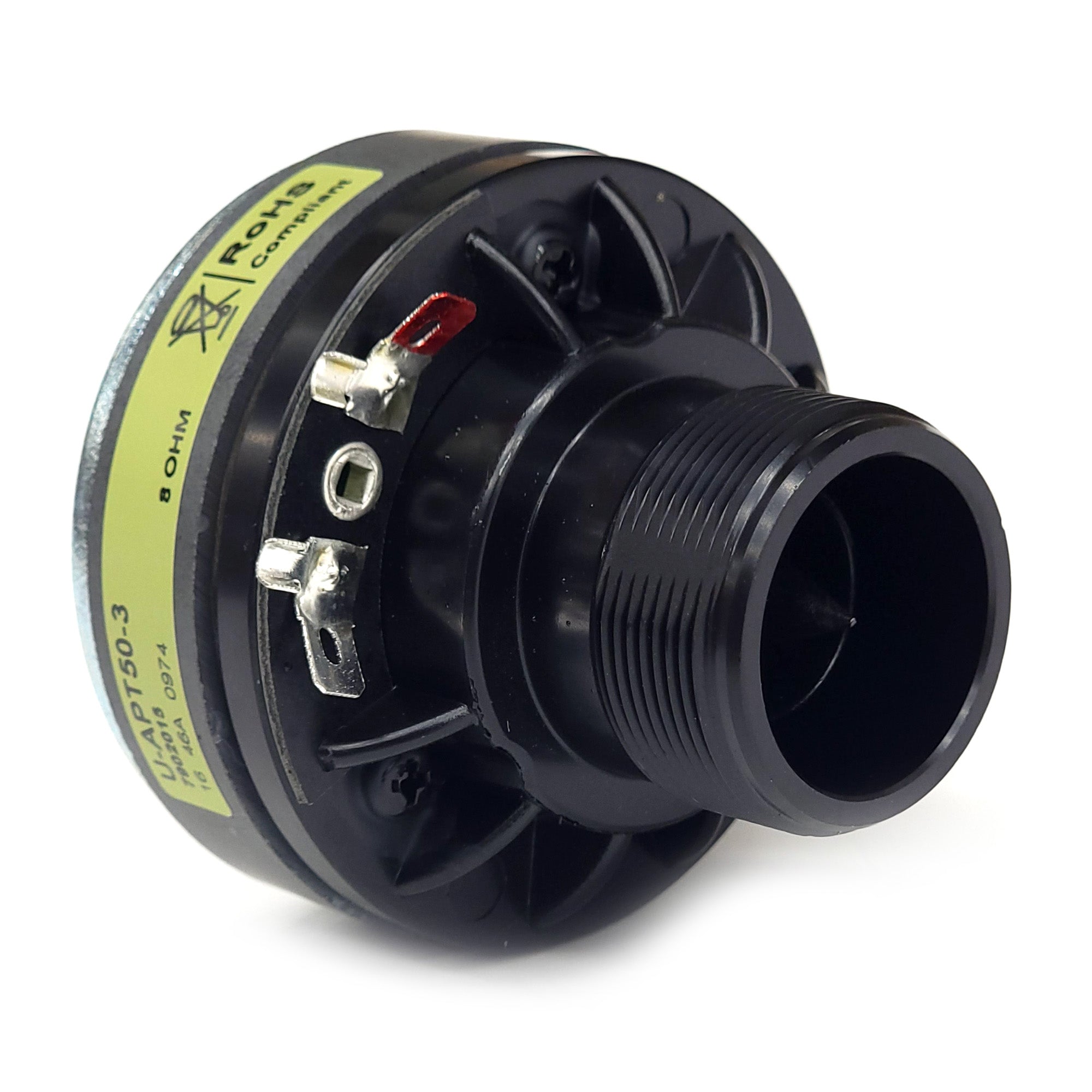

A rear view of the APT:50 driver 'APT SUPER TWEETER' and 'MADE BY EMINENCE' in white on a white background.
Eminence APT50 1-inch High Frequency Driver 45 Watt RMS 8-ohm APT:50
Eminence APT50 1-inch High Frequency Driver 45 Watt RMS 8-ohm APT:50

Eminence APT50 1-inch High Frequency Driver 45 Watt RMS 8-ohm APT:50

Eminence
$ 59.99
$ 49.99
Free shipping on eligible orders. Shipping details.
Snap Logo Lease for as low as $/week Learn More
The APT high-power super tweeter possesses extraordinary sensitivity thanks to a phenolic diaphragm, which has unique properties of stiffness and damping. By fluid cooling the voice coil, increased power handling, controlled low frequency behavior and long-term reliability are assured. The APT super tweeter is available as a stand-alone unit to mount on your favorite 1-3/8"-18 TPI screw-thread horn, or pre-mounted on one of three Eminence horns.

Specifications: • Power handling: 45 watts RMS (crossover frequency 3.5 kHz, 18 dB/octave), 85 watts (crossover frequency 5 kHz, 18 dB/octave) • Impedance: 8 ohms • Useable range: 3,500-20,000 Hz • Fs: 2,500 Hz • Recommended crossover: 3,500 Hz • Sensitivity: 105 dB • Mfg. #APT-50 • Dimensions: Diameter: 2-3/4", depth: 2-1/2".
