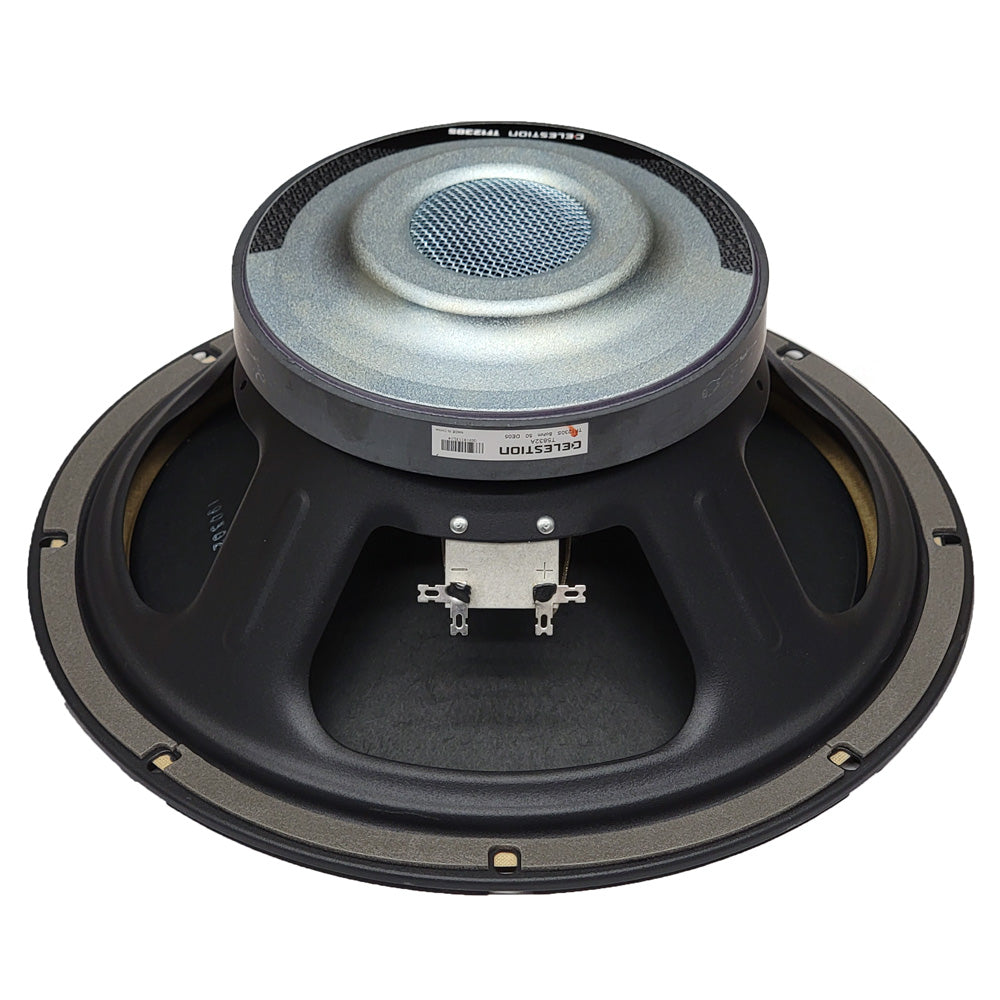

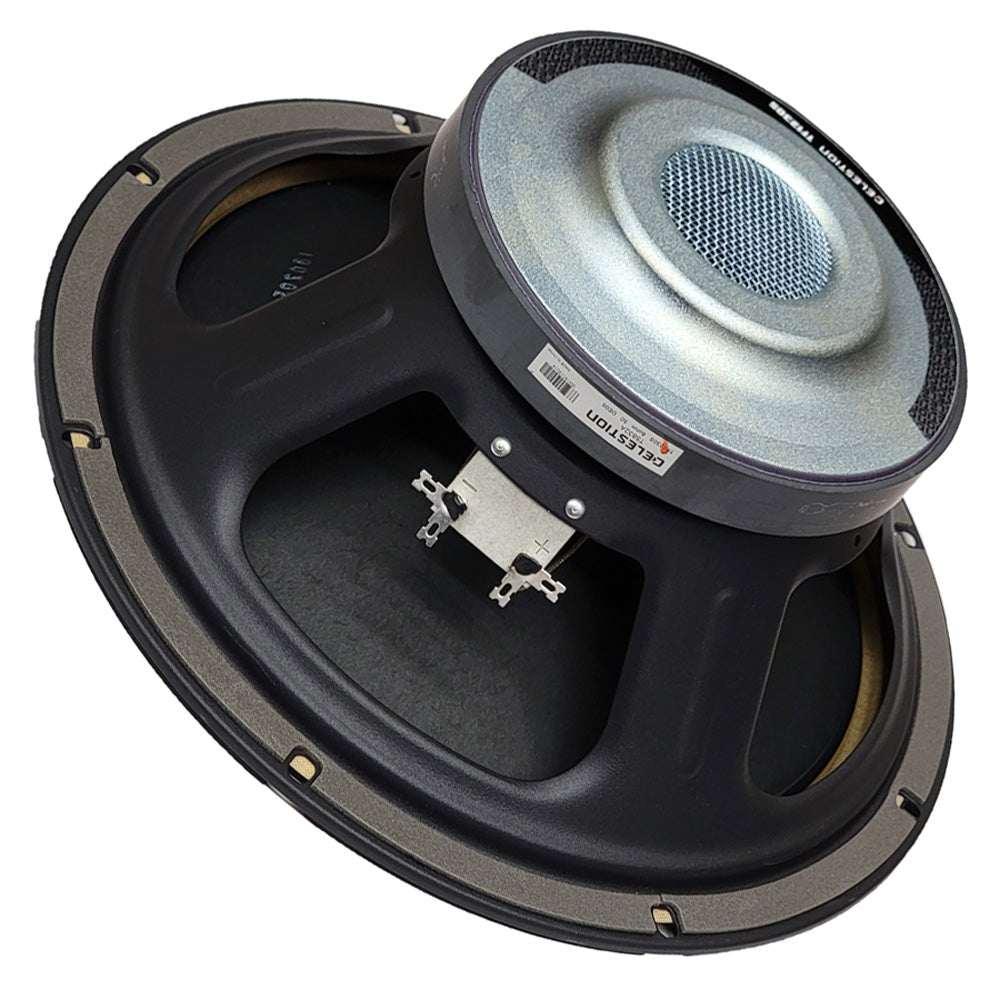

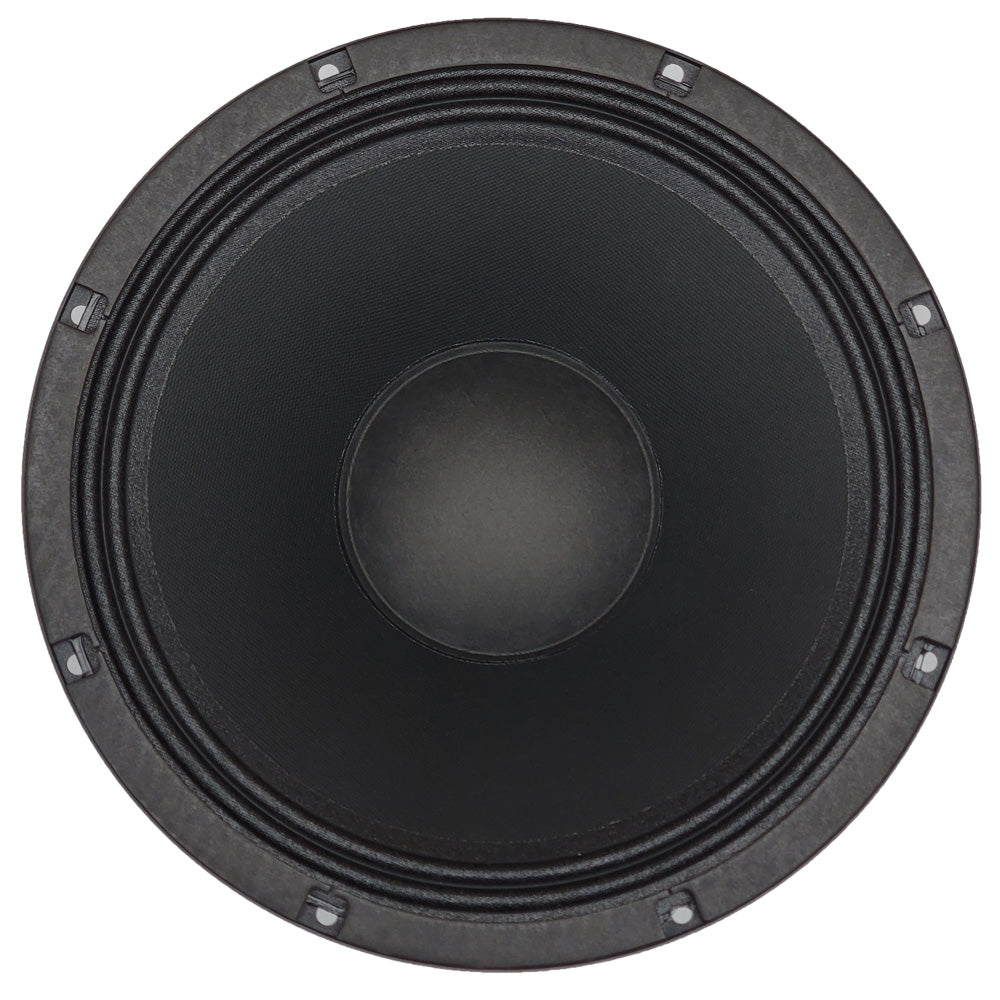

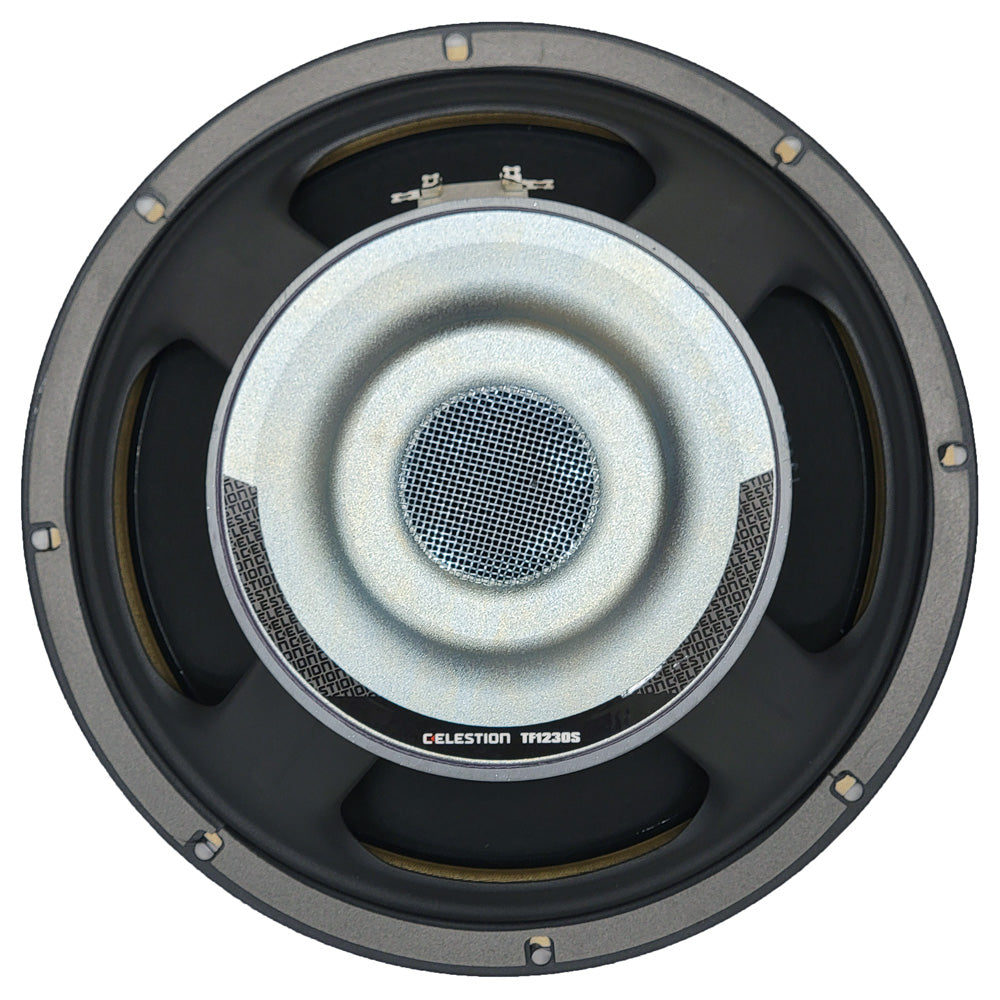

Replacement Woofer for EVS-12K EV F.01U.174.470 for ELX-112P ZLX-12P Speaker
NOTE: THIS WILL NOT FIT ZLX-12BT
Nominal Diameter: 305mm/12in
Nominal Power Rating: 300W
Continuous Power Rating: 600W
Sensitivity: 96dB
Rated Impedance: 8Ω
Frequency Range: 50Hz-4000Hz
Voice coil diameter (mm): 75mm
Voice coil diameter (in): 3in
Chassis Type: Pressed steel
Magnet Type: Ferrite
Magnet Weight: 1.7kg/60oz
Voice coil material: Edgewound CCA
Former Material: Polyimide
Cone material: Kevlar loaded paper
Surround Material: Cloth-sealed
Suspension: Single
Xmax: 4.5mm/0.18in
Gap Depth: 8mm/0.31in
Voice coil winding width: 17mm/0.67in
